Wave Springs·CUSTOMIZATION
Our stainless steel wave springs provide outstanding corrosion resistance, durability, and mechanical strength for demanding environments. Made from premium stainless steel materials, these springs maintain reliable performance under moisture, temperature changes, and harsh operating conditions. Stainless steel wave springs are widely used in medical equipment, aerospace components, s, marine systems, and industrial machinery. Customized sizes, materials, and specifications are available.

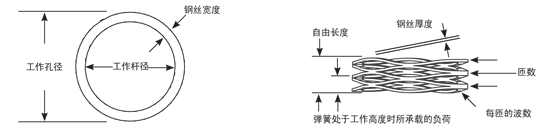

The parameters of the wave spring
The advantages of wave springs
The uniqueness of the wave spring is that in terms of workload, the space occupied by the wave spring is relatively small. In fact, wave springs can reduce the size and weight of components by up to 50%. The wave spring is made of 17-7 stainless steel single-stranded filament, contains a continuous precision coil, and the diameter is consistent with the waveform. The diameter range is: 0.375 inches (9.52 mm) to 1.25 inches (31.75 mm) in order to meet the load requirements: 4 lbs (1.8 kg) to 30 lbs (13.6 kg).
Specifications
- The thickness range is 0.006 inches (0.15 mm) ~ 0.039 inches (1 mm)
- The wire width is 0.024 inches (0.60 mm) ~ 0.230 inches (6.00 mm)
- The outer diameter range is 0.25 inches (6.00 mm) ~ 5 inches (127.00 mm)
| Characteristic |
Parameter |
|
Structure
|
Conventional (bottle loops at both ends closed) |
| Flat loops at both ends closed |
|
Surface treatment
|
Blackening |
| Shot Peening |
| Apply anti-rust oil |
| Zinc plating |
| Polishing |
| Electrolytic polishing |
| Nickel plating |
| Dacromet |
| Teflon spray |
|
Materials
|
Carbon spring steel wire SWC |
| Piano wire SWPB |
| Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631 |
| 65Mn |
| 82B |
| 55CrSi (SWOSC-V) |
| Nickel-plated wire, galvanized wire |
| Copper wire, phosphor copper wire, beryllium copper wire |
| Square wire, flat wire, semicircular wire |
| Alloy material wire |
| Other special specifications steel wire |
